12M26.3 + SCR marine propulsion engine


Engine Data

Cylinders: 12 V @ 90°
Bore & Stroke (mm): 150x150
Total Displacement (L): 31.8
Compression Ratio: 15/1
Engine Rotation: Counterclockwise
Idle Speed (RPM): 650
Flywheel: SAE 0
Flywheel Housing: SAE 18"
Certifications : IMO III | EPA 4 | STAGE V

Downloads

Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR
Moteurs Baudouin Marine 12M26.3 SCR

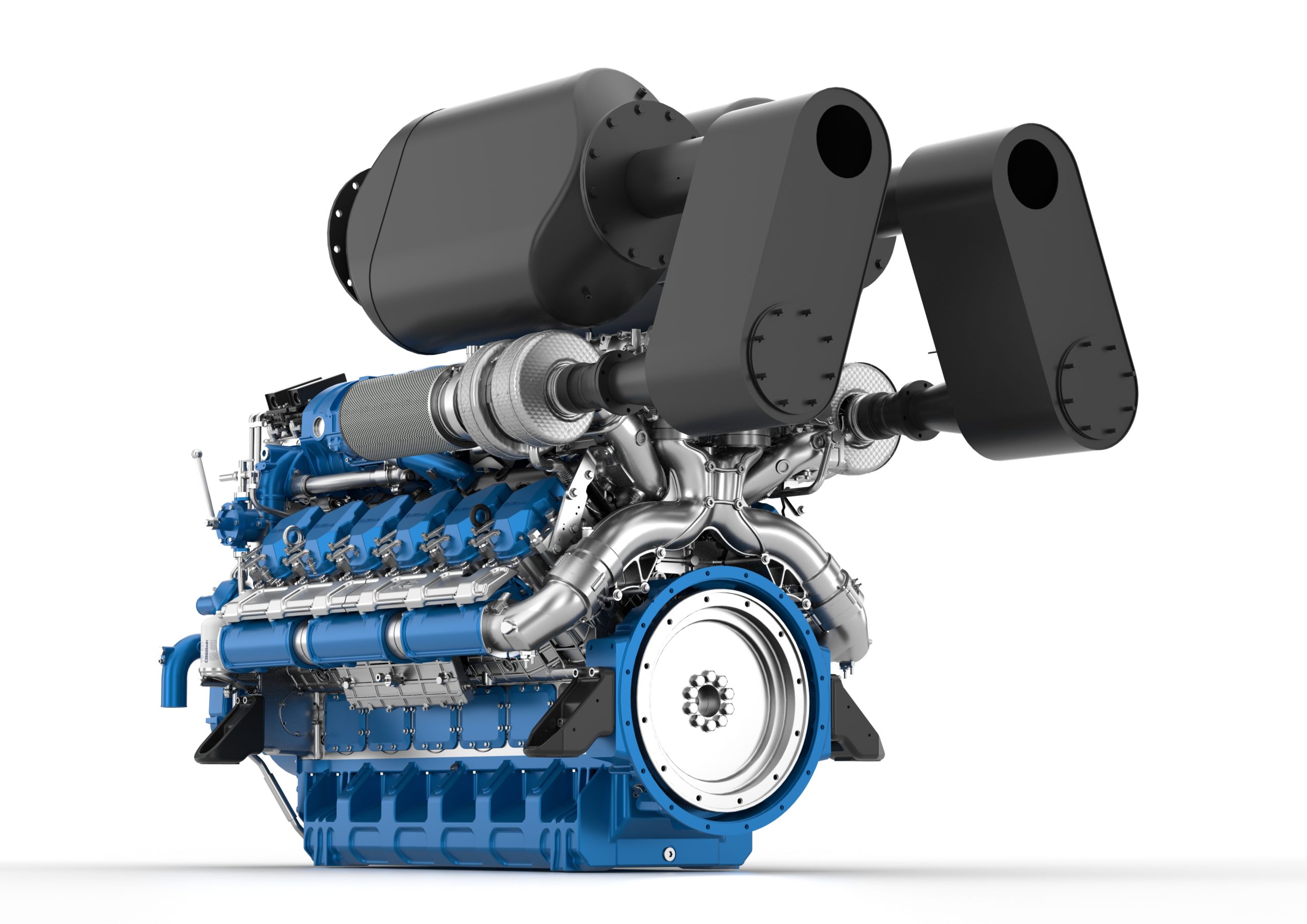

Moteurs Baudouin Marine 12M26.3 SCR exposed with SCR system.
next
previous

Ratings

DutyHPkWRPMCertifications
P112008831800IMO III | EPA 4 | STAGE V
P2140010302100IMO III | EPA 4 | STAGE V
P2150011032200IMO III | EPA 4 | STAGE V
P3165012142300IMO III | EPA 4 | STAGE V
